Stainless Steel 90 Degree Elbow Pipe

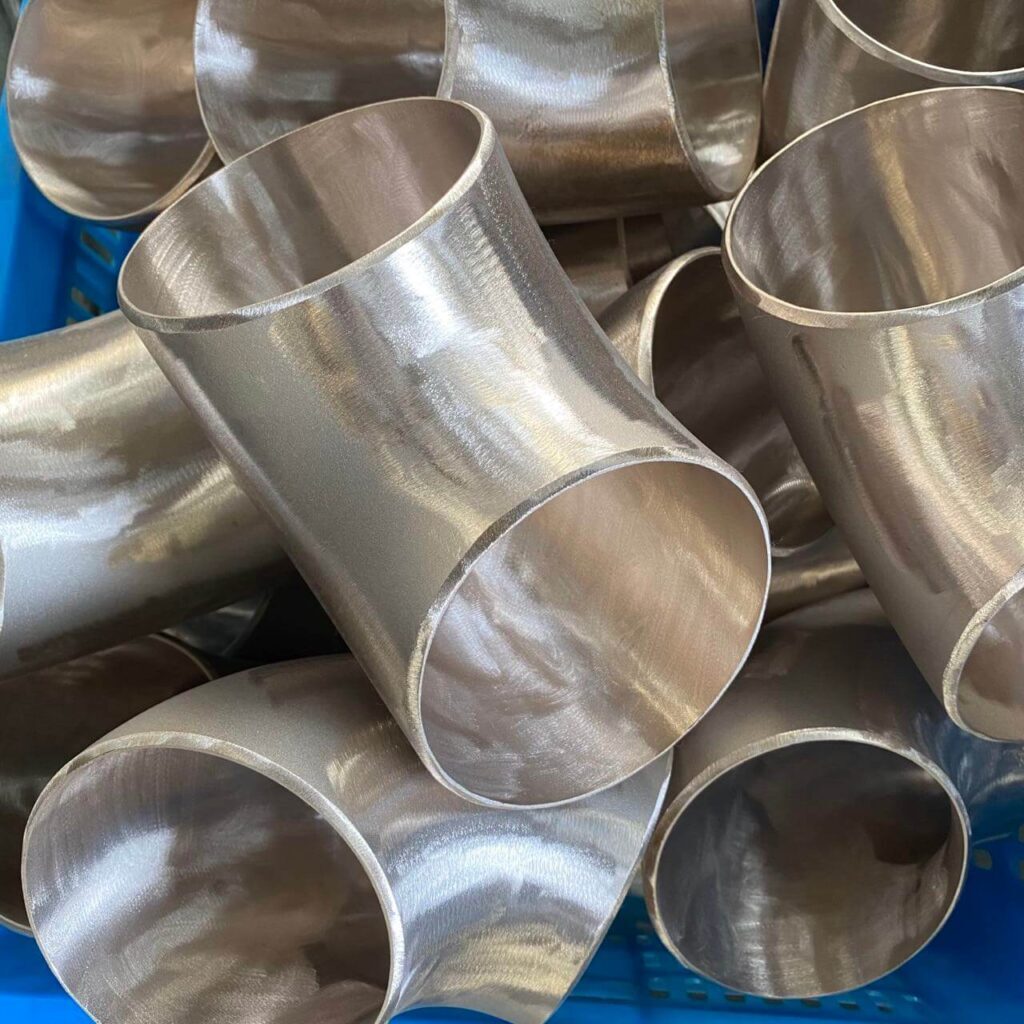

This stainless steel 90 degree elbow is a pipe fitting that changes the direction of a pipeline through a right angle. The body is formed from stainless steel with a smooth bore and a clean opening edge, so it can be welded or fitted straight into a run without additional preparation.
Outer diameter, wall thickness, bending radius and length are supplied to project requirements, and the surface can be left in the standard mill finish, brushed or polished. Each batch can be checked for size, angle, roundness, surface condition and workmanship before packing.
Product Overview
A 90 degree elbow is used wherever a pipeline has to turn a corner within the same plane. Because the bend is formed rather than fabricated from mitred sections, the flow path stays uninterrupted and pressure loss across the fitting is kept to the level expected for a standard radius bend.
The stainless steel body resists rust, corrosion, moisture and daily wear, which is why the fitting is used on water systems, gas lines, chemical equipment and stainless steel fabrication work where a mild steel elbow would need protection. A smooth inner wall reduces flow resistance and supports stable movement of water, gas, oil or other media through the pipeline.
The clean opening edge and round pipe shape make welding, fitting and further processing easier during installation, and the solid body is intended for projects that need reliable strength and pressure resistance over a long service life.
Key Product Features
- 90 degree direction change: Designed to change pipeline direction by 90 degrees for smooth, stable pipe connection in industrial and construction piping systems.
- Stainless steel body: Good resistance to rust, corrosion, moisture and daily wear, extending service life in demanding working environments.
- Smooth inner surface: The inner wall is smooth, which reduces flow resistance and supports more stable movement of water, gas, oil or other media inside the pipeline.
- Clean edge and stable shape: A clean opening edge and round pipe shape make welding, fitting and further processing easier during installation.
- Strong, durable structure: A solid stainless steel body aimed at projects requiring reliable strength, pressure resistance and long-term use.
- Size range built to order: Outer diameters, wall thicknesses, bending radius options and lengths are supplied according to project requirements.
- Surface finish options: Surface can be supplied brushed, polished or in the standard stainless steel finish depending on customer needs.
- Inspection before shipment: Each batch can be checked for size, angle, roundness, surface condition and overall workmanship before packing and delivery.
- Export packing: Products can be packed securely for international shipping to reduce scratches, deformation and damage in transit.
- Bulk supply for trade buyers: A cost-effective stainless steel elbow solution for wholesalers, distributors, engineering contractors and project buyers who need stable bulk supply.
Technical Specifications
| Product | Stainless steel 90 degree elbow pipe |
|---|---|
| Angle | 90 degrees |
| Material | Stainless steel |
| Outer diameter | Supplied to project requirements |
| Wall thickness | Supplied to project requirements |
| Bending radius | Multiple radius options available |
| Length | Supplied to project requirements |
| Surface finish | Standard stainless steel, brushed or polished |
| Inspection | Size, angle, roundness, surface condition and workmanship checked per batch before packing |
| Packing | Export packing for international shipping |
Because the fitting is made to order on diameter, wall thickness and radius, the exact dimensional table is confirmed against your specification rather than taken from a fixed stock list. Send the pipe size and schedule and the matching elbow is quoted against it.
Typical Applications
- Industrial pipelines requiring a 90 degree direction change
- Building water systems and drainage systems
- Gas lines and utility pipework
- Chemical equipment and process piping
- Machinery and production-line pipework
- Construction projects and stainless steel fabrication
- HVAC systems and ventilation pipework
Project note: For fittings the connection standard and the mating pipe size matter as much as the nominal diameter — quote both so the correct item is supplied.
Understanding the Specification Terms
Enquiries for this product often combine terms that describe different things. Clarifying them early avoids the most common sourcing errors:
- Nominal size vs actual dimensions. Nominal pipe size is a reference; the actual outside diameter and wall thickness are set by the applicable standard.
- Connection standard. Butt weld, socket weld, threaded and flanged ends are not interchangeable — the connecting standard must be stated.
- Wall thickness / schedule. The fitting wall thickness must match or exceed the pipe it joins, so quote the pipe schedule alongside the size.
- Bending radius. For elbows, the centre-to-face radius (long radius or short radius) is part of the specification, not just the angle.
- Material and finish. Stainless grades differ in corrosion performance, and the surface finish (mill, brushed, polished) is normally specified separately.
Information Required for a Quotation
To receive an accurate offer, please provide:
- Type of fitting and the angle or configuration required
- Nominal size plus the actual outside diameter and wall thickness
- Connection standard (butt weld, socket weld, threaded, flanged)
- Material grade and surface finish
- Quantity and whether certification is required
- Destination and required delivery date
Manufacturing, Inspection and Delivery
Stock items are cut, sawn, machined or formed to the sizes on your drawing; material is released against the mill certificate for the heat number supplied. Processing procedure sets out how cutting, edge preparation and surface work are sequenced.
Inspection follows the quality testing procedure: dimensional check, surface condition and, where the grade calls for it, chemical and mechanical verification against the standard quoted on the order. Third-party inspection by SGS, BV or Lloyd's can be arranged on request.
Packing follows the packaging procedure for export — bundles secured with steel strip for small sizes, loose pieces for heavy sections, with waterproof protection where the route requires it. Sea and container shipping options are described under logistics.
Frequently Asked Questions
What is a 90 degree elbow pipe used for?
It changes the direction of a pipeline through a right angle, allowing a run to turn a corner while keeping a smooth internal flow path.
What sizes can you supply?
Outer diameter, wall thickness, bending radius and length are all supplied to project requirements, so the fitting is quoted against the pipe size and schedule you are working to.
What surface finishes are available?
The surface can be supplied in the standard stainless steel finish, brushed, or polished, depending on requirements.
How is quality checked before shipment?
Each batch can be checked for size, angle, roundness, surface condition and overall workmanship before packing and delivery.
Can the elbows be supplied in bulk for a project?
Yes. The product is intended for wholesalers, distributors, engineering contractors and project buyers who need stable bulk supply.
How are the elbows packed for export?
Products are packed securely for international shipping to help reduce scratches, deformation and damage during transportation.
Related Products
Luoyue Metal supplies pipe, tube and pipe fittings — elbows, tees, reducers, flanges and couplings — in carbon steel, stainless steel and alloy grades. Tell us the standard and size and we will match it.
Request a quotation?
Send the size, standard and quantity and we will come back with price and lead time. Email: info@lyapm.com
