1060 Pure Aluminum – Grade & Parameters

Grade: 1060 pure aluminum, one-side blue PVC, fast lead time within 5 days.

1060 Aluminum Material Parameters

Core Parameters: Al content ≥99.6%, density 2.68 g/cm³, tensile strength 110-136 MPa, elongation rate 3%-5%, hardness about 26 (Vickers hardness 30HB).

Detailed Parameter Analysis

Basic Characteristics

Chemical Composition

Aluminum (Al) ≥99.6%, with main impurities including iron (Fe≤0.35%), silicon (Si≤0.25%), copper (Cu≤0.05%), etc. The low alloy composition makes it a representative of pure aluminum, suitable for scenarios requiring high electrical conductivity and corrosion resistance.

Physical Properties

Density: 2.68-2.71 g/cm³ (slightly different from sources).
Electrical Conductivity: Second only to silver and copper, suitable for the electrical field.

Mechanical Properties

Tensile Strength: 110-136 MPa (national standard).
Yield Strength: ≥35 MPa (some references indicate above 75 MPa).
Elongation Rate: 3%-5%, indicating excellent plastic processing properties, suitable for stamping, drawing, and other processes.
Hardness: About 26 (Vickers hardness 30HB), due to the soft nature of pure aluminum.

Processes and Standards

Heat Treatment: Rapid annealing temperature 350-410°C, holding time 30-120 minutes.
National Standard Basis: Follows GB/T 3880-2012, but hardness is not clearly indicated (only standards exist for high-strength alloys such as 7075).

Application Fields

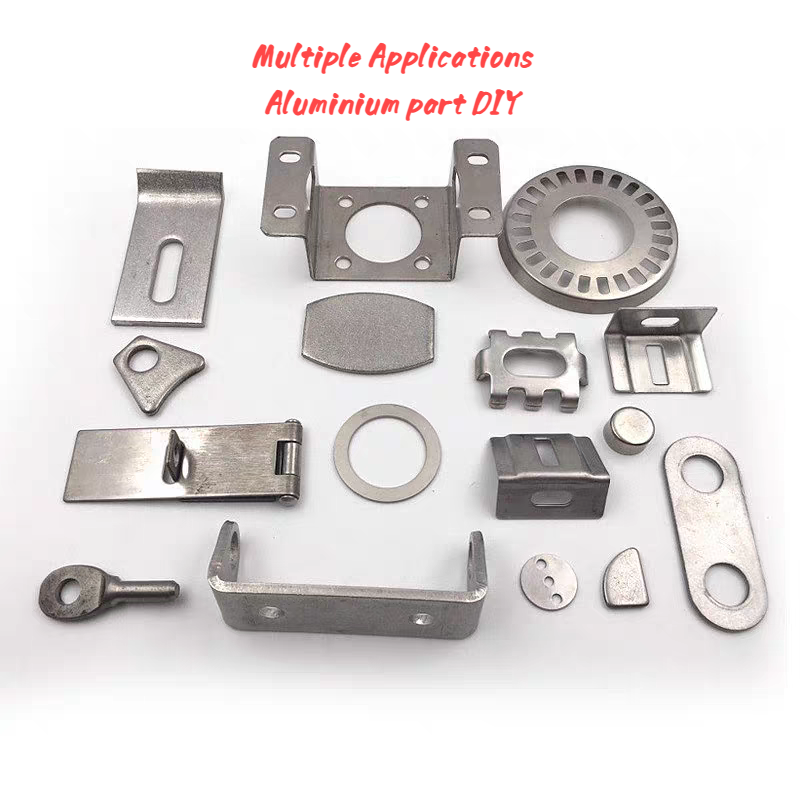

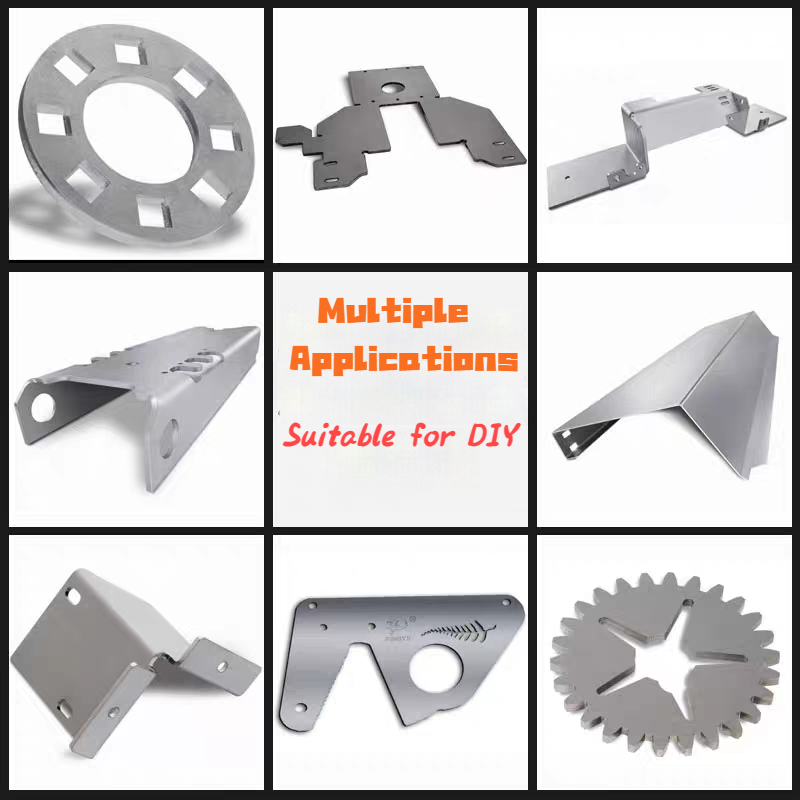

Advertising billboards, architectural decoration, chemical instruments, etc., where high strength requirements are not critical.
Electrical components (such as cables) benefit from its high electrical conductivity.
