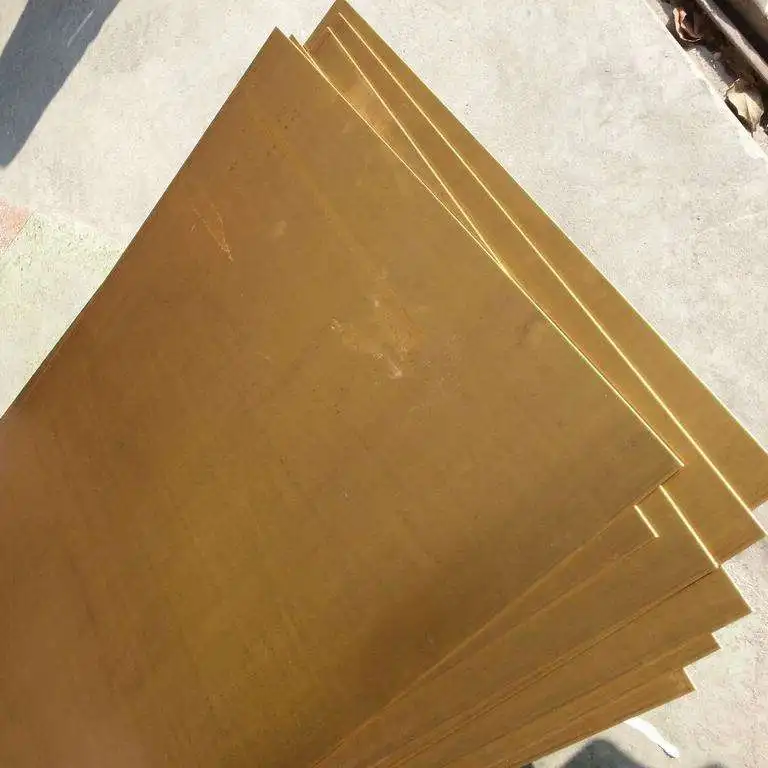

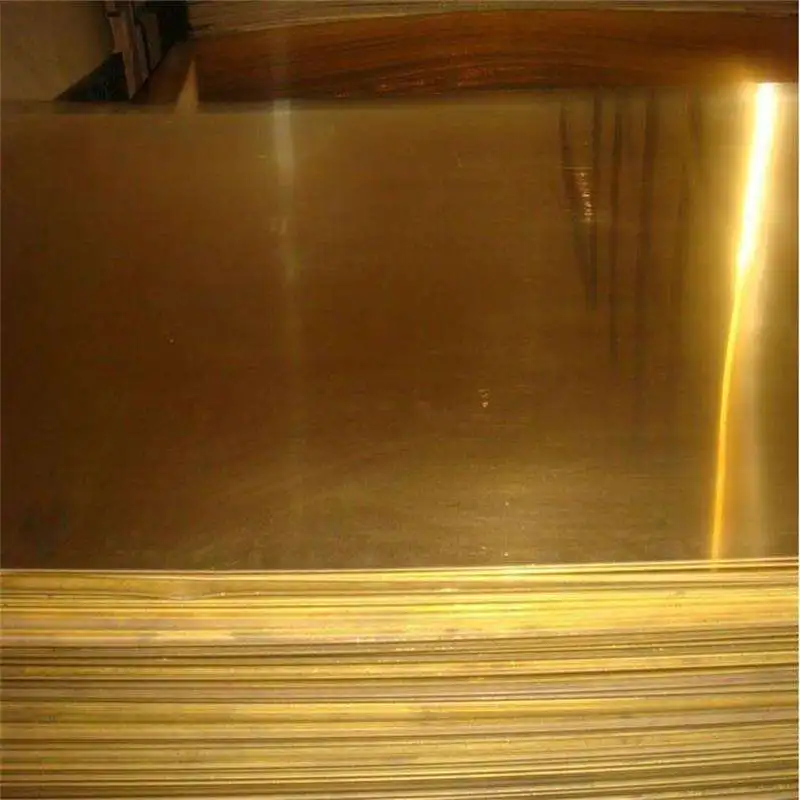

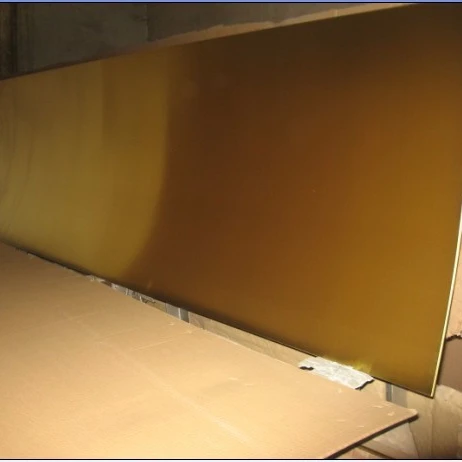

c61400 aluminium bronze plate ca104
c61400 aluminium bronze plate ca104

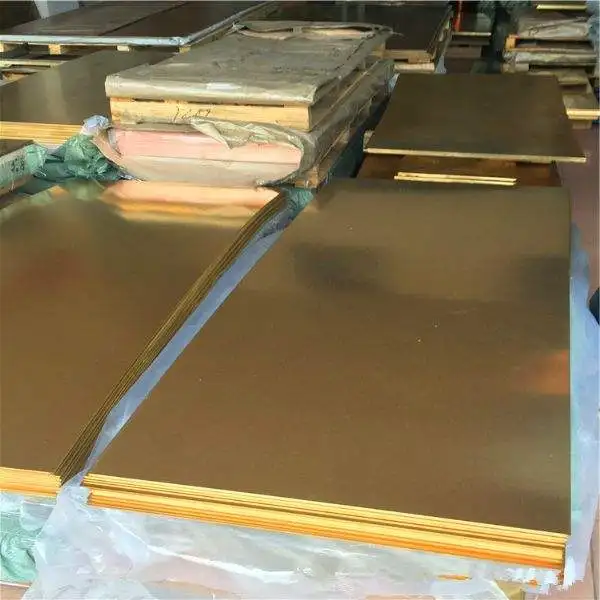

QAL11-6-6 Aluminum Bronze Sheet
we have our own cooperative copper factory,mainly do aluminum bronze and brass,both have sheet,bar,pipe and wire
Specifications
Nickel Aluminum bronze:C63000,C67300,C66800,C67420 etc.
High strength,high hardness,high precision,free working.
Item | Specification | Characteristics | Application | |||
ASTM | DIN | JIS | GB | |||
- | QAl9Mn2 | - | QAl9-2 | 15.0-60.0mm
| High strength, good anti-friction quality, good corrosion resistance in the atmosphere, fresh water, seawater, hot processing, can be welding, brazing is not easy. | Widely used in machinery, ships, aviation and manufacturing sectors such as bearings, bushings, pump parts, gear turbo, seat, bolts, nuts, structural parts. |
C61400 | CuA18Fe3 | C6161 | QAl9-4 | |||
C62300 | CuA110Fe3Mn2 | C6191 | QAl10-3-1.5 | |||
C63000 | CuA110Ni5Fe4 | C6301 | QAl10-4-4 | |||
C66800 | - | - | PW23608 | 6.0-125.0mm | High strength,high hardness,high precision,heating and cutting. | Widely used in construction machinery industry, hydraulic pump/motor, synchronizer loop,turbocharger,bearing, bushing,gear,mold standard parts,engine wear resistance. |
C67300 | - |
| PW23604 | 6.0-125.0mm | ||
C67420 | CW713R | - | PW23601 | 6.0-110.0mm | ||
Chemical Compositon of CuAl10Ni5Fe4 (wt%)
| Al | Fe | Mn | Ni | Pb | Si | Sn | Zn | Other | Cu |
| 8.5-11.0 | 3.0-5.0 | ≤1.0 | 4.0-6.0 | ≤0.05 | ≤0.2 | ≤0.1 | ≤0.4 | ≤0.2 | REM |
| Europe | France | USA | GB | DIN |
| CW307G | CuAl10Ni5Fe4 | C63000/C63020 | CA104 | CuAl10Ni5Fe4 |
Mechanical Properties (EN 12163)
| Material condition | Dia(mm) | Tensile strength RM N/mm2 | Proof strength Rp0.2 N/mm2 | Elogation (A%) | Hardness HB |
| R740 | 15-50mm | ≥740 | ≥530 | ≥8 | ≥200 |

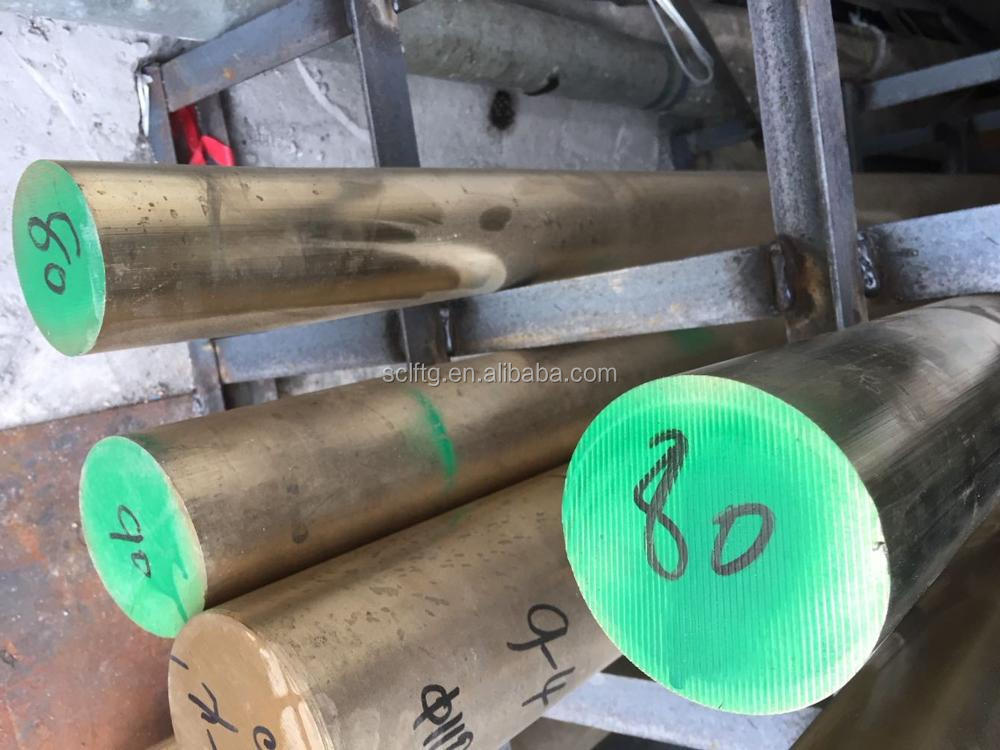

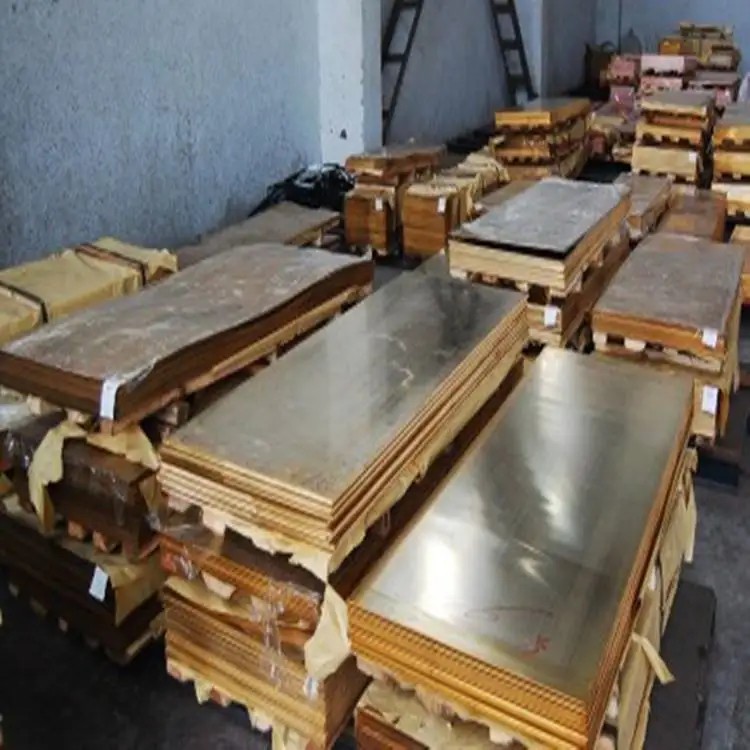

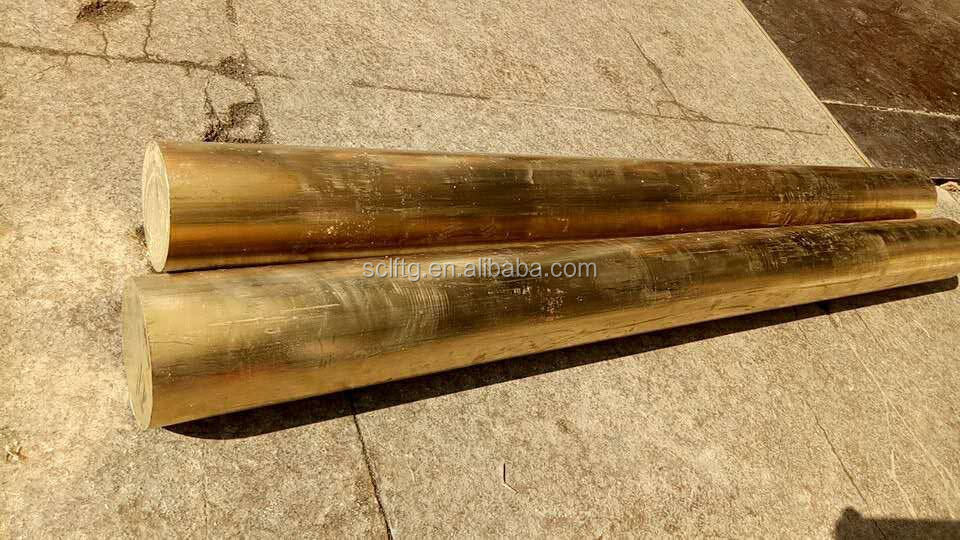

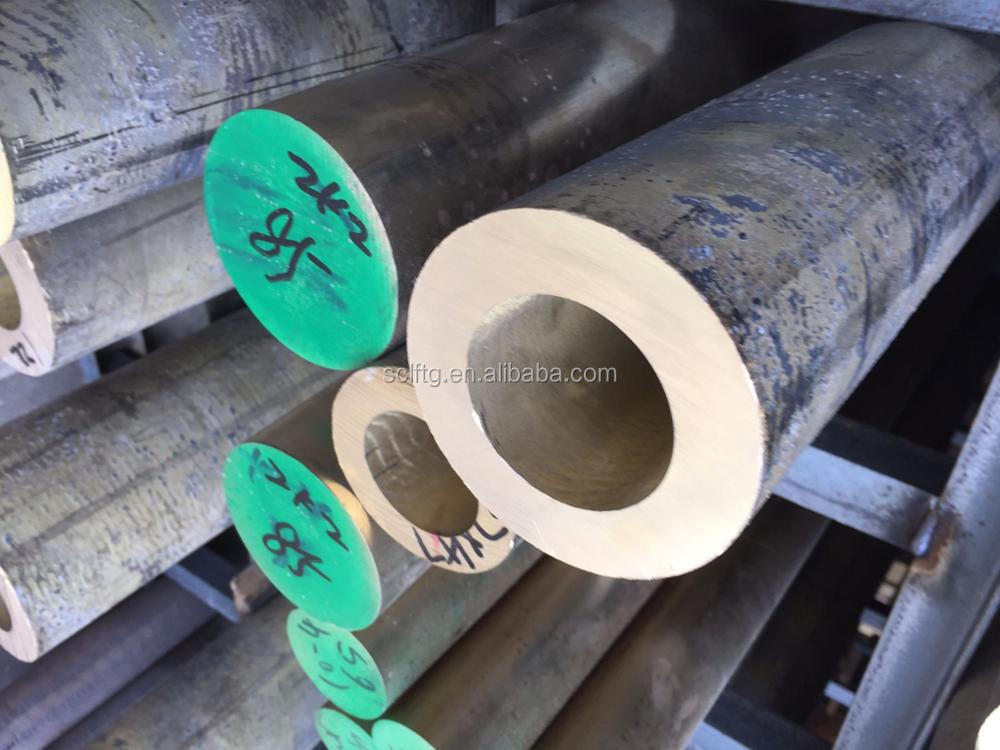

we have sold aluminum bronze bar and tube to pakistan,Malaysia, Uzbekistan,Thailand ,please check some our pictures below
Our Main Products
Bronze
1 chromium bronze QCR0.5 QCR0.5-0.2-0.1 QCR0.6-0.4-0.05
2 phosphor bronze PB1 PB2
3 packfong C2112C2111 C2113
4 silicon bronze QSI3-1 QSI 1-3 QSN3.5-3-1.5
5 manganese bronze QMN1.5 QMN2 QMN5
6 lead bronze ZCuPb10Sn10 ZCuPb15Sn8 ZCuPb20Sn5 ZCuPb17Sn4Zn4
7 aluminum bronze QAL9-4 QAL9-2 QAL9-4-4-2 QAL10-3-2 QAL25-6-6-6 QAL10-4-4 QAL10-5-5 QAL11-6-6
8 tin bronze QSn4-3,QSn6.5-0.1,QSn7-0.2,QSn6.5-0.4, QSn1.5-0.2 , QSn4-4-4 QSn7-0.2 QSn8-0.3 , ZQSn6-6-3 , ZCuSn5Pb5Zn5, ZCuSn10Pb1, ZCuSn10Pb2 ,3-8-6-1 , 3-11-4
brass
1 iron aluminium brass 35-2-2-1 38-2-2
2 aluminum brass HAL66-6-3-2,HAL61-4-3-2,HAL60-1-1,HAL59-3-2
3 brass H90,H62,H68,H85,H70,H65
4 lead brass HPB63-3,HPB63-0.1,HPB62-0.8,HPB62-2,HPB60-2,HPB59-3,HPB59-1
certificates

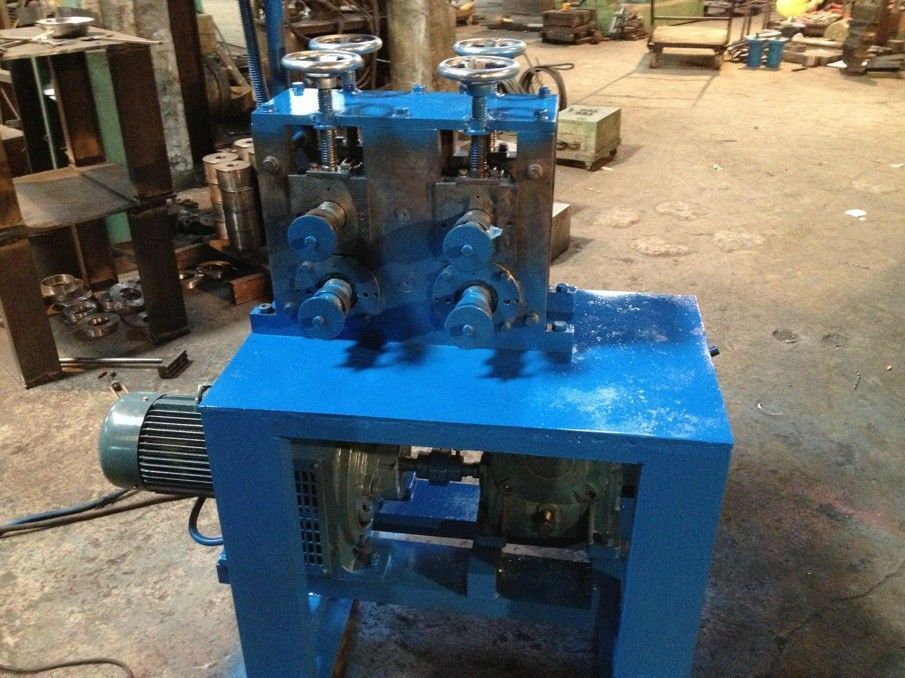

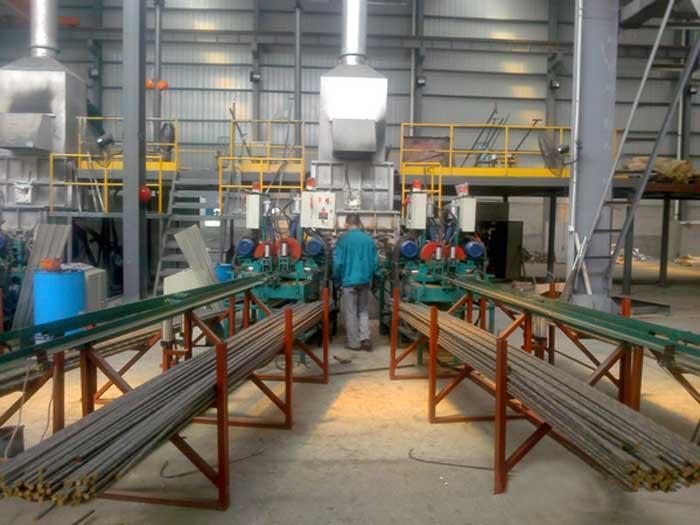

process of produce
- Place of Origin:
- Jiangsu, China
- Brand Name:
- liaofu
- Model Number:
- Aluminum Bronze
- Application:
- Industrial
- Shape:
- Plate
- Width:
- 20~2500mm
- Material:
- Bronze
- Grade:
- Aluminum Bronze
- Cu (Min):
- 62%
- Alloy Or Not:
- Is Alloy
- Ultimate Strength (≥ MPa):
- 220--400
- Elongation (≥ %):
- 3-30
- Product Name:
- aluminium bronze plate
- Surface:
- Polished
- Shipment:
- Sea
- Payment Term:
- 30% TT 100% L/C
