Trench Drain Grating Cover Galvanized Steel Grating

Product Overview

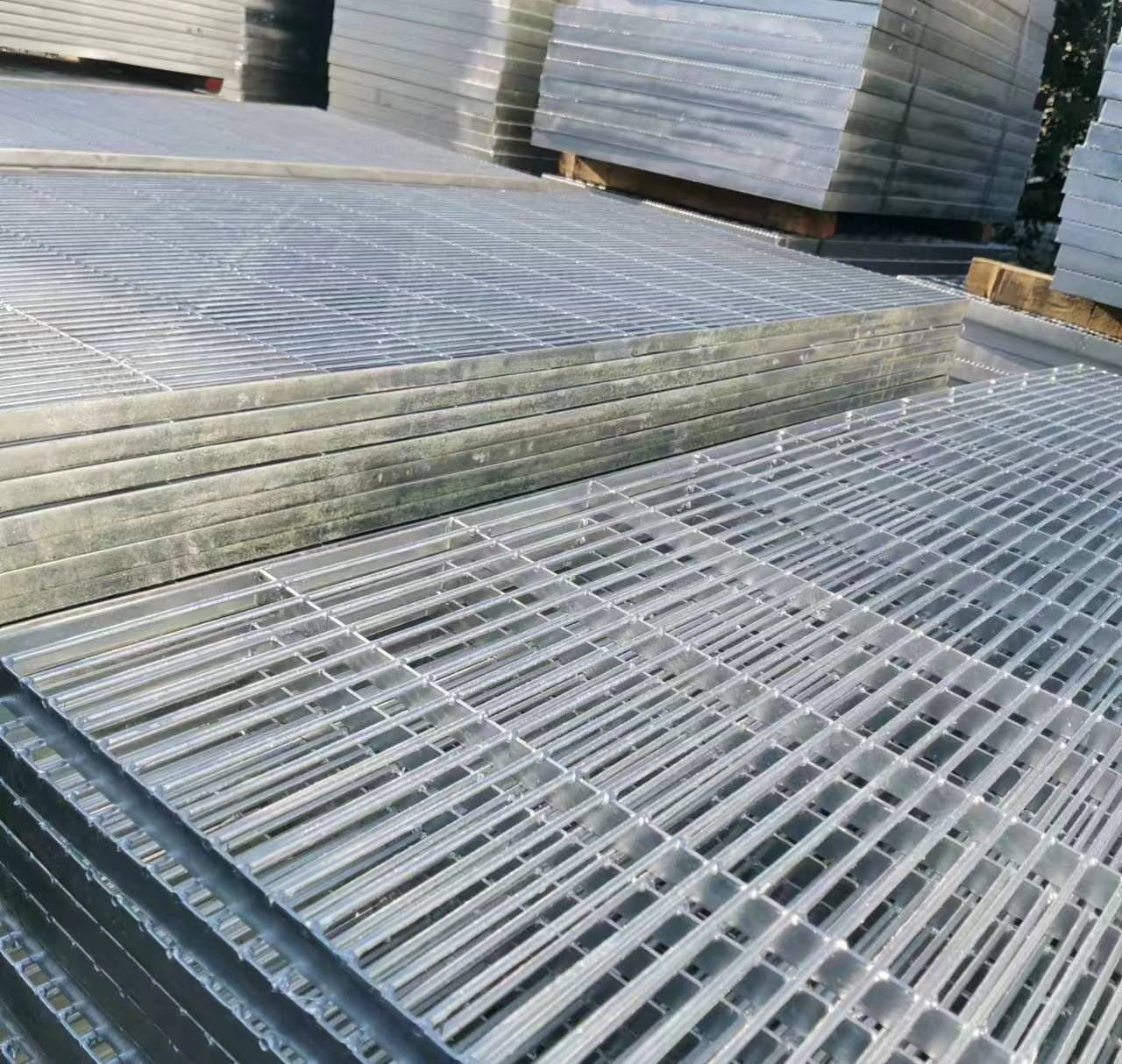

A galvanized steel grating cover made for trenches and drainage channels, supplied as a panel that bridges an opening and carries traffic while allowing water to fall through. This listing publishes no dimensions, no load class and no bar arrangement, because trench covers are built around the channel they sit on: width, support ledge and installed condition decide the panel.

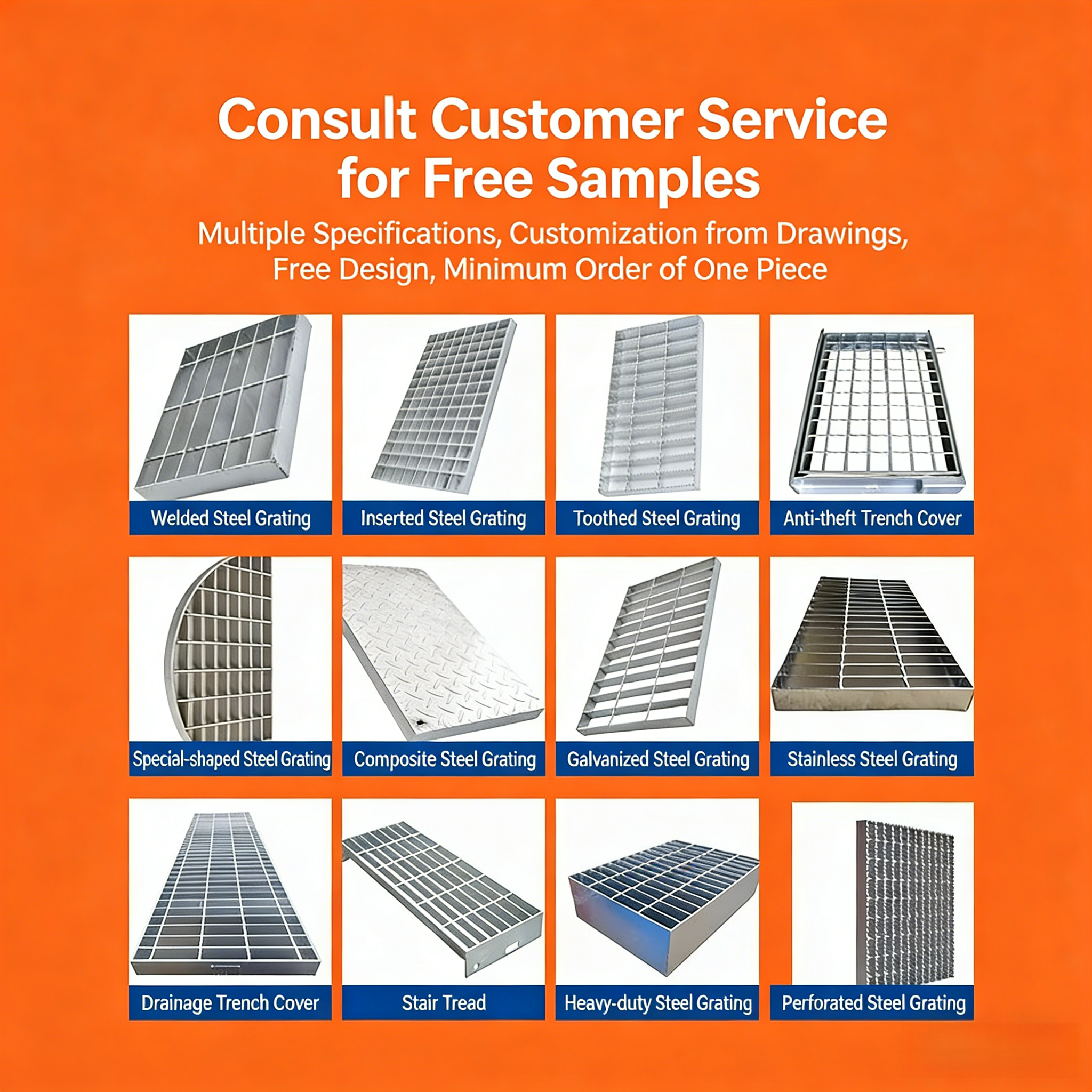

The accompanying image is a product family overview from our catalogue, showing the grating, cover and trench styles around this item rather than the exact cover supplied for any one project. Related panels appear in the drain grating category and the drain cover category.

What Defines a Trench Cover

Every cover is shaped by a small number of site conditions. Getting these wrong is not a cosmetic issue, because a cover fails at its supports far more often than in mid span.

• Channel width and clear span: The distance between bearing surfaces sets the bearing bar direction and the depth the bars need.

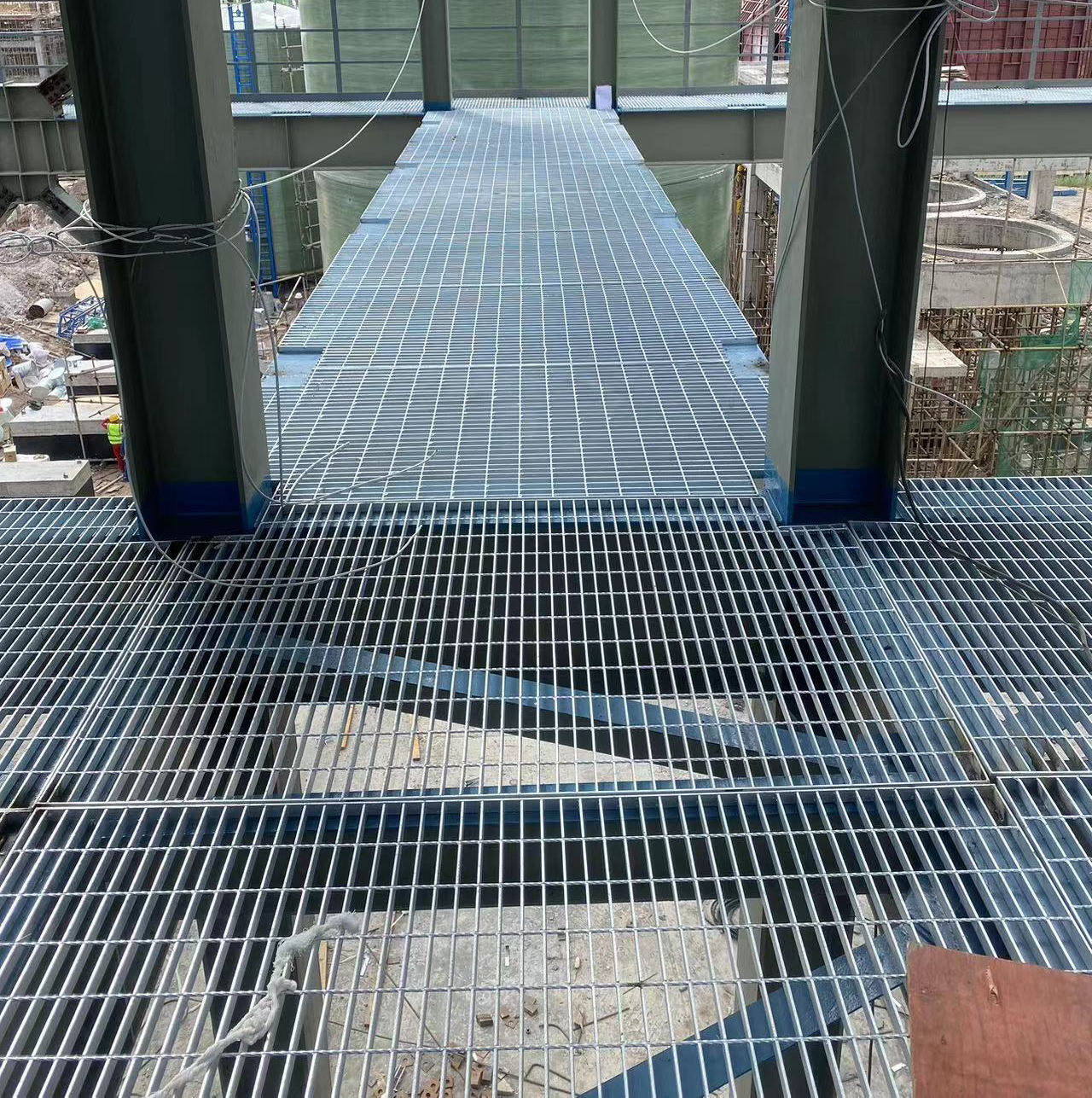

• Support condition: A rigid frame with a full ledge behaves differently from a cover resting on a concrete edge that can crush or crumble.
• Traffic type: Pedestrian, maintenance foot traffic, handcarts, or rubber wheeled and steel wheeled vehicles are separate design cases to be declared by the project.
• Opening and drainage demand: Bar pitch decides how much water and how much debris passes, and how much stays on the surface.

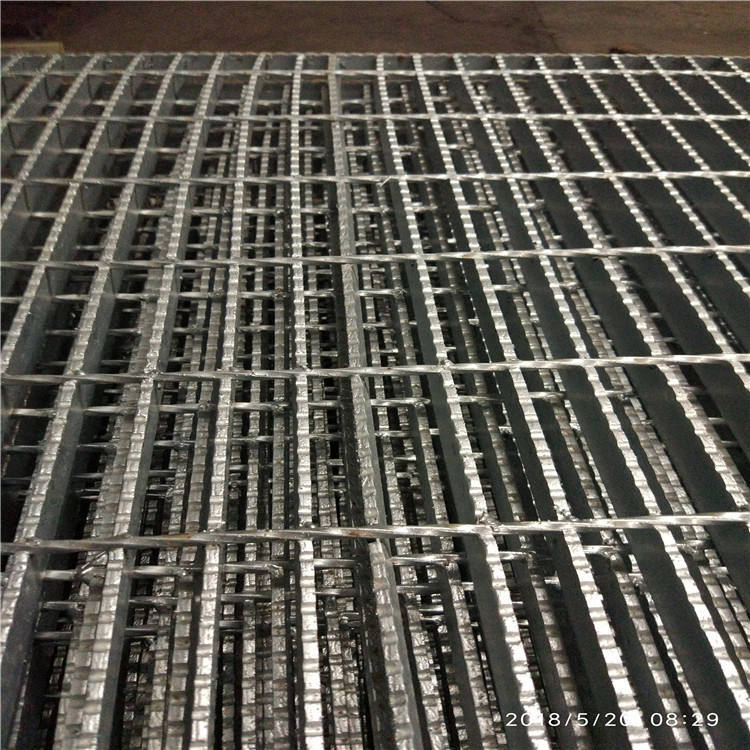

• Slip resistance: Plain bar tops suit dry routes; serrated or toothed tops are chosen where the cover is regularly wet, oily or frozen.
• Retention method: Loose laid, clamped, bolted, hinged, or secured with a locking feature that discourages lifting and theft.
• Frame and anchoring: The border, its fixing to the substrate, and how impact loads reach the surrounding pavement.

Fields to Confirm at Inquiry

Project note: Load class is a property of the installed assembly, not of the steel plate. Ledge support, frame condition, grout quality and the surface the vehicle actually drives over all influence the result, so the required class must come from the project structural check and be confirmed against the cover arrangement supplied.

Fit-Up and Maintenance

Covers should sit flush so a wheel or a heel strikes the bearing bar instead of an upstanding edge. Panels that rattle usually indicate a ledge that is too shallow or a frame that has moved, both of which accelerate edge damage. Allow access for cleaning: an open mesh trench that silted up loses both drainage capacity and the benefit of being open. Where a cover is lifted regularly, hinge it or specify a lifting arrangement so the mesh is not used as a handhold.

Frequently Asked Questions

Can covers be made for curved or tapered trenches?

Shaped, wedged and fan cut panels are part of this family, as the catalogue image indicates. Send a layout with each unique size marked rather than assuming one panel fits all.

Is a frame supplied with the cover?

Frames, border flats and hinge sets can be arranged with the panels. State whether the existing channel already has a bearing frame before quoting.

Which finish lasts longest in a trench?

Hot dip galvanizing is the normal choice for buried and exposed drainage work; the coating route is described on the processing procedure page.

Do you supply samples?

Sample and handling questions are covered in the site FAQ and under shipping and handling.

Related Products

For the panel structure behind these covers see galvanized steel grating, and for the coating itself see hot dip galvanized open mesh grating.

Specify the trench, then the cover.
Send the channel layout, clear width, ledge detail, traffic condition and fixing preference; the cover proposal follows from those facts.
