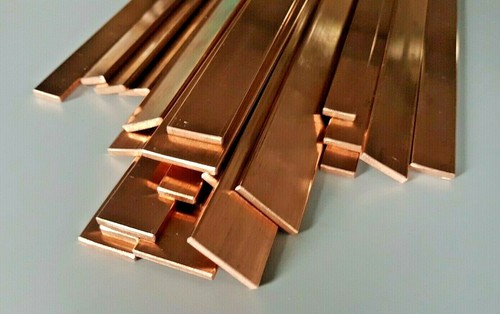

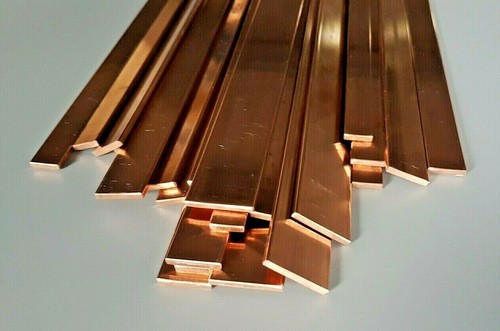

Copper Flat Bar CW004A 1/8" Thick, 1/2", 5/8", 3/4", 1" Widths Various Lengths

1/8" Thick CW004A Copper Flat Bar 1/2", 5/8, 3/4", 1" Wide Various Lengths

Applications include: General Engineering, Electronics, Bus bars, Automotive, Domestic Appliances & Cold Formed Components

Available Flat Bar Sizes

Width (Shown as Dimension A in Photographs)

1/2" (12.7mm)*

5/8" (15.88mm)*

3/4" (19.05mm)*

1" (25.4mm)*

Thickness (Shown as Dimension B in Photographs)

1/8" (3.18mm)*

*Metric in millimetres (mm) sizes are given as approximations

Tolerance on dimensions is +/- 0.2mm - but often much better

Available Lengths:

50mm

100mm

150mm

200mm

300mm

600mm

1000mm (1 Metre)

Cutting Tolerance on length is +/- 2mm

Please note that there are 10mm in 1cm and 100cm in 1 metre.

Cutting and machining service is available via our engineering workshop, please ask for details

General Material Information - Copper CW004A

This grade of material refers to coppers of 99.9% purity and is used in a wide range of engineering applications.

After Silver, Copper is the next best material used for conducting electricity. Since it also has a high thermal conductivity, this material is a good choice for use in conductor and electrical applications. Copper also has good mechanical properties in terms of toughness, ductility, impact strength and is also malleable.

The machinability of this grade of copper is rated as 20. To give context to this, a CZ121 Free machining brass is rated to approximately 100. The hot and cold working performance of CW004A Copper is given as excellent. Work hardening effects set in relatively slowly, and the material can be annealed in neutral and oxidising atmospheres. Heat treatments such as this can be carried out by a rapid cooling process after heating to 370 to 650 degrees C.

The corrosive resistance of this material can be described as either good or excellent in most environmental conditions, except those containing ammonia ions.

CW004A can be easily soldered, brazed and butt welded. Other welding processes are not recommended.

For any further information or advice, please feel free to contact us. Our details are given at the bottom of this listing.
