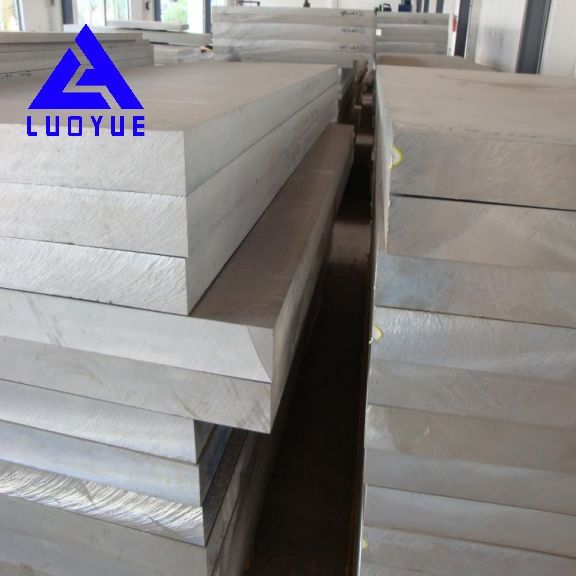

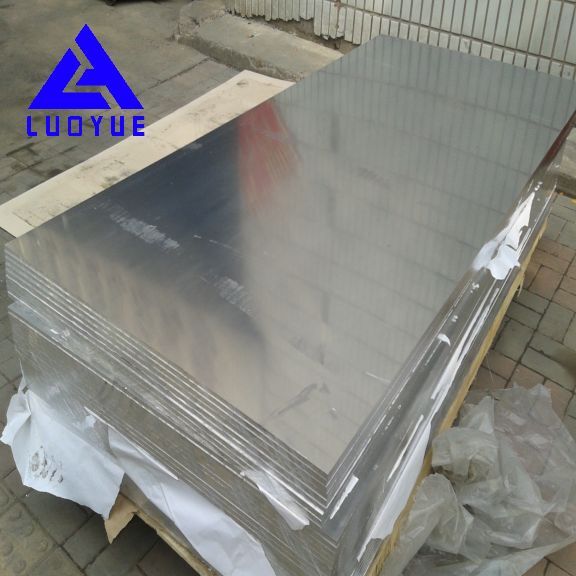

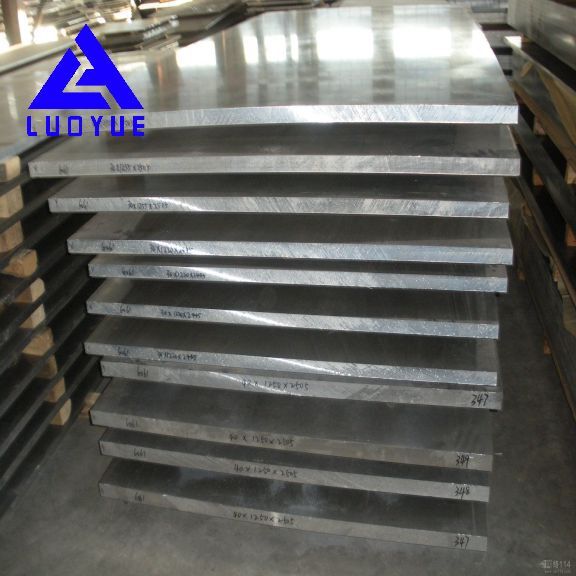

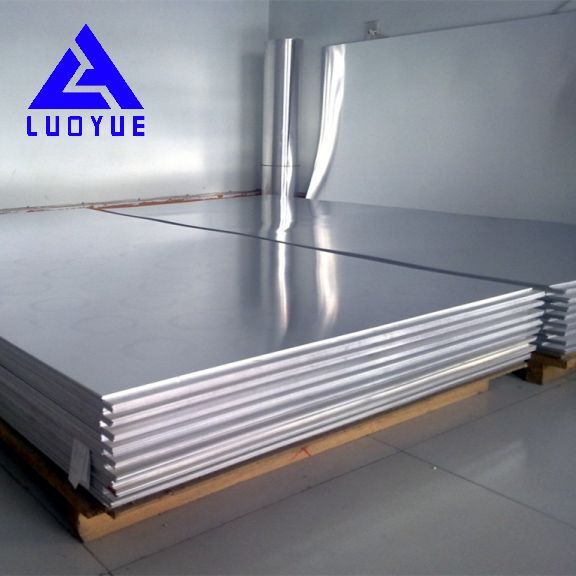

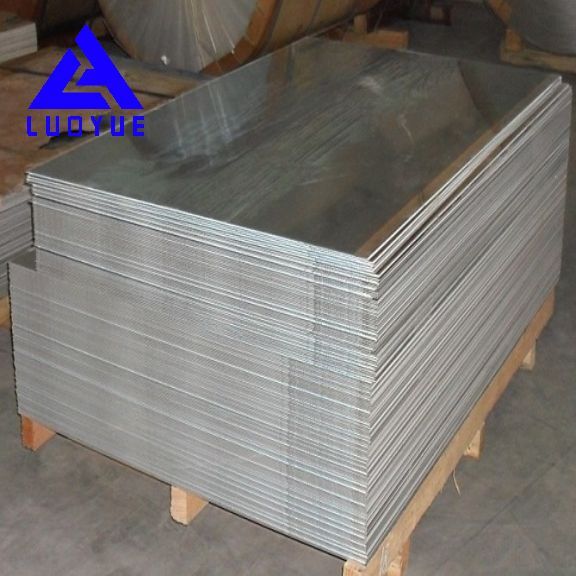

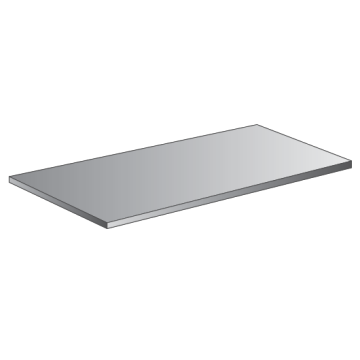

6061 T6 Aluminium plate
Aluminum Alloy 6061 Properties, Data Sheet & Specs.
The following tables and lists summarize 6061 aluminum properties, datasheet and specs including chemical composition, physical properties and mechanical properties, welding, hardness, machinability, heat treating, etc.
Chemical Composition
Aluminium 6061 chemical composition is listed in the following table.
| AA-6061 Chemical Composition, % | |||||||||||
| ASTM, SAE AMS | ANSI, Alloy (UNS) | Si | Fe, ≤ | Cu | Mn, ≤ | Mg | Cr | Zn, ≤ | Ti, ≤ | Other Elements, Each (Total), ≤ | Al |
| ASTM B209; ASTM B211; ASTM B221; ASTM B210; ASTM B308/B308M; ASTM B308/B308M; ASTM B308/B308M; ASTM B241/B241M; SAE AMS 4025; SAE AMS 4026; SAE AMS 4027; SAE AMS 4117 | 6061 (UNS A96061) | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 (0.15) | Remainder |
Notes (various standards of 6061 aluminum):
- ASTM B209: Aluminum and Aluminum-Alloy Sheet and Plate.
- ASTM B211: Rolled or Cold Finished Bar, Rod, and Wire.
- ASTM B221: Extruded Bars, Rods, Wire, Profiles and Tubes.
- ASTM B210: Aluminum and Aluminum-Alloy Drawn Seamless Tubes.
- ASTM B308/B308M: AL 6061-T6 Aluminum Structural Profiles.
- ASTM B241/B241M: Seamless Pipe and Seamless Extruded Tube.
- SAE AMS 4025: Sheet and Plate; Temper O; Annealed.
- SAE AMS 4026: Sheet and Plate; Temper T4, T42, T451 (-T4 Sheet, -T451), Solution Heat Treated and Naturally Aged.
- SAE AMS 4027: Sheet and Plate; Temper T6 Aluminum, T62, T651 (AL 6061-T6 Sheet, 6061T651 Plate) Solution and Precipitation Heat Treated.
- SAE AMS 4117: Rolled or Cold Finished Bars, Rods, and Wire and Flash Welded Rings; (AL 6061-T6 Aluminum, 6061-T651).
6061 Aluminum Physical Properties
6061 aluminum physical properties are given in the following lists, including density, melting point, coefficient of thermal expansion, elastic modulus, thermal conductivity, specific heat capacity electrical conductivity, and electrical resistance.
Notes:
- 10-6·K-1 = 10-6/K = 1 μm/m·°C
- 1 Ω·mm²/m = 1 μΩ·m
- 1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
- 1 GPa = 1 kN/mm2
- 1 MPa = 1 N/mm2
The melting range shown applies to wrought products with a thickness of 6.35 mm (1/4 in.) or greater.
Specific gravity: 2.7
| Al-6061 Aluminum Physical Properties | |||||||||
| ASTM | Alloy and Temper | Density, g/cm3 (lb/in.3) | Melting point, °C (°F) | Specific heat capacity, J/kg·K (Btu/lb ·°F) | Coefficient of thermal expansion, 10-6/K (μin./in. ·°F) | Thermal diffusivity, mm2/s | Thermal conductivity, W/m·°C (Btu∙in/h∙ft²∙°F) | Electrical conductivity, Equal volume (Equal weight), % IACS | Electrical resistivity, Ω·mm2/m (Ω· circ mil/ft) |
| ASTM B209; ASTM B210; ASTM B221; ASTM B241; ASTM B308; SAE AMS 4027; SAE AMS 4117; SAE AMS 4025; SAE AMS 4026 | 6061-O | 2.70 (0.098) | 580-650 (1080-1205) | 896 (0.214) at 20 °C (68 °F) | 23.6 (13.1) at 20-100 °C (68-212 °F) | 66 | 180 (1250) at 25 °C (77 °F) | 47 (155) at 20 °C (68 °F) | 0.0365 (22) at 20 °C (68 °F) |
| 6061-T4 | 154 (1070) at 25 °C (77 °F) | 40 (132) at 20 °C (68 °F) | 0.043 (26) at 20 °C (68 °F) | ||||||
| 6061-T6 | 167 (1160) at 25 °C (77 °F) | 43 (142) at 20 °C (68 °F) | 0.040 (24) at 20 °C (68 °F) | ||||||
Mechanical Properties
Aluminium 6061-T6 mechanical properties are listed in the following tables including yield strength (yield stress), ultimate tensile strength, shear strength, modulus of elasticity, young’s modulus, etc.
The following mechanical properties is the average value of various sizes, product forms and manufacturing methods, so the properties cannot be guaranteed. They are only used as a basis for comparing alloys and tempering, and should not be specified as engineering requirements or used for design purposes.
| Aluminum 6061 Mechanical Properties, Part-1 | |||||
| Aluminum Alloy and Temper | Ultimate Tensile strength, MPa (ksi) | Yield strength, MPa (ksi) | Elongation in 50 mm (2 in.), ≥% | Brinell Hardness, HB (500 kgf load 10 mm ball) | |
| 1.6mm (1/16 in.) thick specimen | 12.5mm (1/2 in.) thick specimen | ||||
| 6061-O | 125 (18) | 55 (8) | 25 | 27 | 30 |
| 6061-T4, T451 | 240 (35) | 145 (21) | 22 | 22 | 65 |
| 6061-T6, T651 | 310 (45) | 275 (40) | 12 | 15 | 95 |
| Alclad 6061-O | 115 (17) | 50 (7) | 25 | – | – |
| Alclad 6061-T4, T451 | 230 (33) | 130 (19) | 22 | – | – |
| Alclad 6061-T6, T651 | 290 (42) | 255 (37) | 12 | – | – |
| Aluminum 6061 Mechanical Properties, Part-2 | |||
| Aluminum Alloy and Temper | Ultimate shear strength, MPa (ksi) | Modulus of elasticity, GPa (106 psi) | Fatigue endurance limit, MPa (ksi) |
| 6061-O | 85 (12) | 69 (10) | 60 (9) |
| 6061-T4, T451 | 165 (24) | 69 (10) | 95 (14) |
| Al 6061-T6, T651 | 205 (30) | 69 (10) | 95 (14) |
| Alclad 6061-O | 75 (11) | 69 (10) | – |
| Alclad 6061-T4, T451 | 150 (22) | 69 (10) | – |
| Alclad 6061-T6, 6061-T651 | 185 (27) | 69 (10) | – |
Notes for modulus of elasticity: The average of the tensile (Young’s modulus) and compressive modulus. The compression modulus is about 2% higher than the tensile modulus (Young’s modulus).
| Aluminum 6061 Typical Mechanical Properties at Different Temperatures | ||||
| Alloy and temper | Temperature, °C (°F) | Ultimate tensile strength, MPa (ksi) | 0.2% offset yield strength | Elongation in 50 mm (2 in.), ≥%, |
| 6061-T6, 6061-T651 | -195 (-320) | 415 (60) | 325 (47) | 22 |
| -80 (-112) | 338 (49) | 290 (42) | 18 | |
| 0 (-18) | 325 (47) | 283 (41) | 17 | |
| 24 (75) | 310 (45) | 275 (40) | 17 | |
| 100 (212) | 290 (42) | 262 (38) | 18 | |
| 150 (300) | 235 (34) | 215 (31) | 20 | |
| 205 (400) | 130 (19) | 103 (15) | 28 | |
| 250 (500) | 52 (7.5) | 35 (5) | 60 | |
| 315 (600) | 32 (4.6) | 19 (2.7) | 85 | |
| 370 (700) | 21 (3) | 12 (1.8) | 95 | |
Notes:
- ① Postweld artificially aged only.
- ② For thicknesses greater than 19 mm (3/4 inch), 4643 filler is required.
Brushed aluminum plate: The manufacturing process of repeatedly scraping the aluminum plate out of the line with sandpaper. The main process of the process is divided into three parts: deesterification, sand mill, and water washing. In the aluminum sheet drawing process, the special film technology after anodizing can make a film layer containing the metal component on the surface of the aluminum sheet, and clearly show every fine wire mark, so that the metal matte shines with fine hair. Silky sheen. Alumina plate: The aluminum plate is formed by placing the aluminum plate in the corresponding electrolyte (such as sulfuric acid, chromic acid, oxalic acid, etc.) as an anode, and performing electrolysis under specific conditions and applied current. The aluminum plate of the anode is oxidized, and a thin layer of aluminum oxide is formed on the surface, the thickness of which is 5~20 microns, and the hard anodized film can reach 60~200 microns.
PS aluminum plate (advertisement aluminum plate, also known as printed zinc plate, newspaper plate): that is, an aluminum plate with a printed pattern on the back and a thickness of 025 or 03.
People who like 1144 Sum43 Cold Drawn Steel Hexagon Bar,steel bar, also like HOT ROLLED FORGED, CARBON STEEL, TOOL STAINLESS STEEL 1045, 4140, 4130,6063
If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.
- Full sheet size:
- Full sheet size 1250*2500,Full Sheet size 2000*4000,Full Sheet size 2500*5000,Full Sheet size 2500*4000
- Serivce:

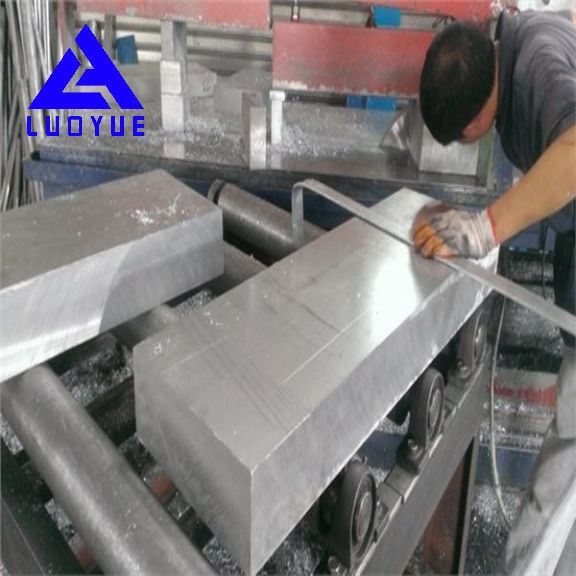

- Manufacturer Brand： MingTai AL,Available for cuting,Provide Material Certificate,Short lead time,Competitive price
